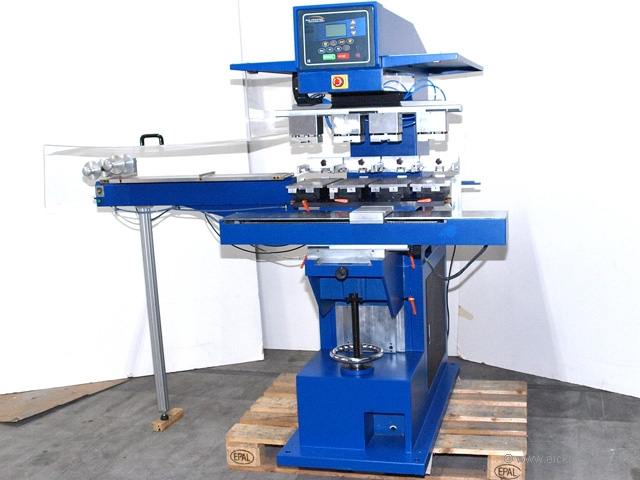

Pad Printing Machine PRK4M (402 SCDEL)

Prices after login !!!

Product No.: 21C004
Print product data sheet

Delivery time:

3 - 7 Days after payment

4-colour-machine, stand model, electro pneumatic control, closed ink system, equipped with additional cylinders for each pad, pad cleaning device, ink cup ø 140mm, cliché size: 4x150x320mm, with servo controlled sliding table, which is height adjustable via spindle, pad pressure 270kgs when 6bar, needed compressed air: 6bar, needed power supply: 230V, 50Hz, used, good condition, year of manufacture: 2016

Sturdy housing made of aluminium cast, electro-pneumatic control, clear display with modern microprocessor control, optional signal outputs for connection of peripherals. Stand models with sturdy torsion-resistant support out of steel plate with an extended downward adjustment of the feeding table to positioning of higher objects. European/Japanese pneumatic elements, low running by air sound absorbers, pad pressure adjustable via display, closed ink system with register pins for magnetic fastening, ink cups with ceramic doctor rings, contact pressure adjustable via magnetic adjustment. All machines equipped with safety plates at the sides as well as emergency switch and foot switch.
