Pad Printing Machine TIC PRL6C-177.8-VP-MPC

Prices after login !!!

Product No.: 16005PRL6CM
Print product data sheet

Delivery time:

on request

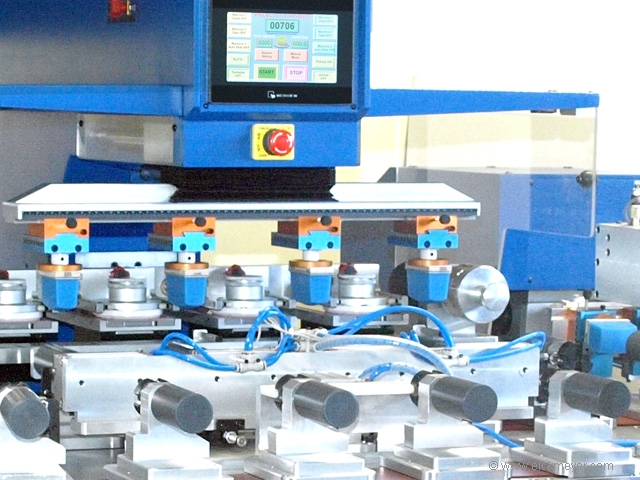

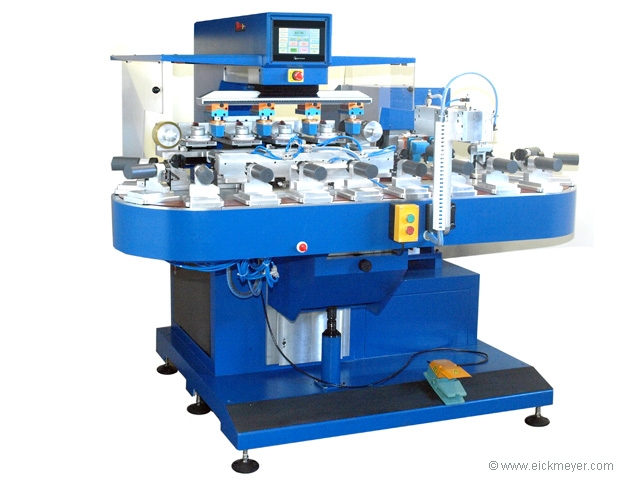

Pad Printing Machine TIC PRL6C-177.8-VP-MPC

6-colour-machine, stand model, electro pneumatic control, closed ink system, ink cup: ø 90mm, cliché size: 4x100x250mm and 2x80x200mm, incl. carré table with 20stations, which is height-adjustable via spindle, incl. 20arbors for printing of beverage cartouches. Connection: compressed air 6bar, 230V, 50Hz, pad pressure: 350kgs when 6bar.

Sturdy housing made of aluminium cast, electro-pneumatic control, clear display with modern microprocessor control, optional signal outputs for connection of peripherals. Stand models with sturdy torsion-resistant support out of steel plate with an extended downward adjustment of the feeding table to positioning of higher objects. European/Japanese pneumatic elements, low running by air sound absorbers, pad pressure adjustable via display, closed ink system with register pins for magnetic fastening, ink cups with ceramic doctor rings, contact pressure adjustable via magnetic adjustment. All machines equipped with safety plates at the sides as well as emergency switch and foot switch. Needed connection: compressed air 6bar, 230volts, 50cycles.
