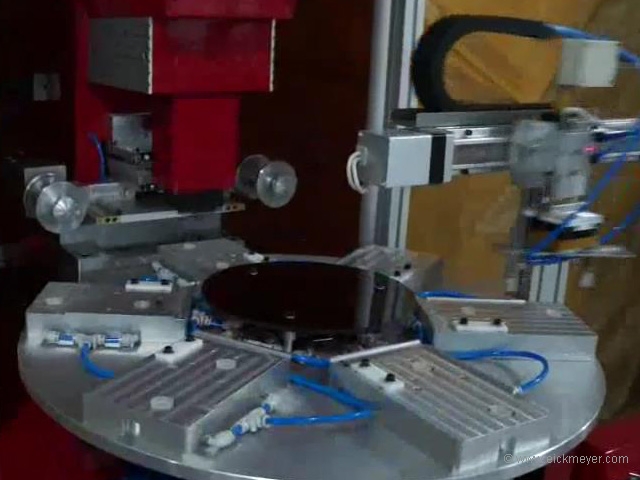

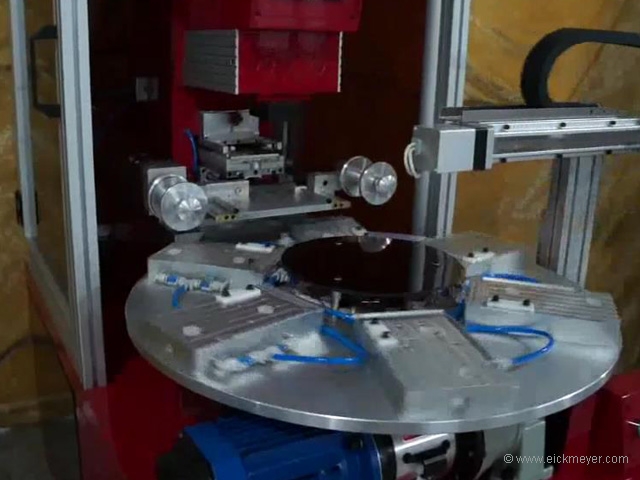

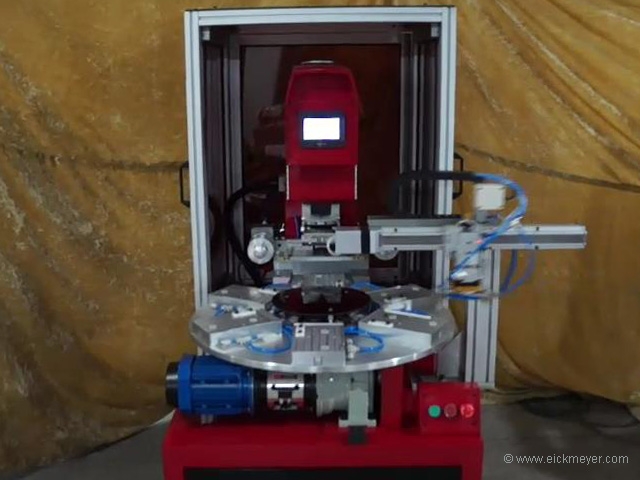

Pad Printing Machine TIC 801 SC-T-R6-PC

Prices after login !!!



Product No.: 16021801SC-T-R6PC
Print product data sheet
Delivery time: on request
  Pad Printing Machine TIC 801 SC-T-R6-PC
  Pad Printing Machine TIC 801 SC-T-R6-PC
  Pad Printing Machine TIC 801 SC-T-R6-PC

1-colour machine, stand model, electro pneumatic control, closed ink system, ink cup ø: 90mm, cliché size: 100x265mm, with motor-driven rotary plate with 6positions, incl. pad cleaning, with removal station, pad pressure: 105kgs when 6bar, needed connection: compressed air 6bar, 230V, 50Hz.

Sturdy housing made of aluminium cast, electro-pneumatic control, clear display with modern microprocessor control, all parameters adjustable via touch panel. Stand models with sturdy torsion-resistant support out of steel plate. European/Japanese pneumatic elements, low running by air sound absorbers, pad pressure adjustable via display, ink cups with ceramic doctor ring, contact pressure adjustable via magnetic adjustment. All machines equipped with safety plates at the sides as well as emergency switch and foot switch. Needed connection: compressed air 6bar, 230V, 50Hz.



Video File
