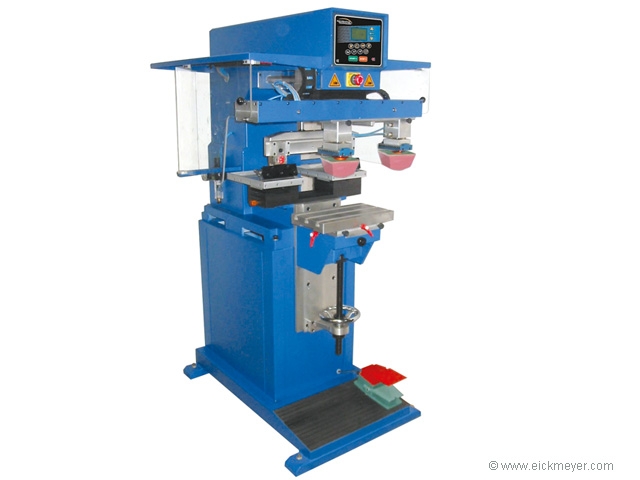

Pad Printing Machine TIC 309 SDEL-IP

Prices after login !!!

Product No.: 16009309SDEL-IP
Print product data sheet

Delivery time:

on request

2-colour-machine, stand model, electro pneumatic control, open ink system, with pad movement, equipped with additional cylinders for each pad, cliché size: 2x150x150mm, with cross feeding table, which is height-adjustable via spindle, pad pressure: 168kg when 6bar.

Sturdy housing made of aluminium cast, electro-pneumatic control, clear display with modern microprocessor control, optional signal outputs for connection of peripherals, European/Japanese pneumatic elements, low running by air sound absorbers, pad pressure adjustable via display, automatically adjusting doctor blade, squeegee pressure infinitely adjustable for optimal doctoring of the ink. Inkwells easy to clean by integrated magnetic plates. All models with open ink system can easily be re-constructed for bigger inkwells. All machines equipped with safety plates at the sides as well as emergency switch and foot switch. Needed connection: compressed air 6bar, 230volts, 50cycles.
