Pad Printing Machine TIC 183 SEL

Prices after login !!!

Product No.: 16006183SEL
Print product data sheet

Delivery time:

on request

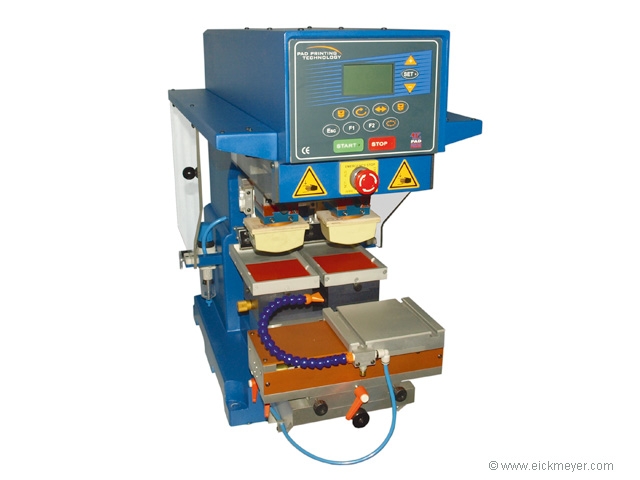

2-colour-machine, table-top model, electro pneumatic control, open ink system, clichée size 2x100x100mm (option: 1x300x100mm), height-adjustable pneumatic controlled sliding table, pad pressure 105kgs when 6bar.

Sturdy housing made of aluminium cast, electro-pneumatic control, clear display with modern microprocessor control, optional signal outputs for connection of peripherals, European/Japanese pneumatic elements, low running by air sound absorbers, pad pressure adjustable via display, automatically adjusting doctor blade, squeegee pressure infinitely adjustable for optimal doctoring of the ink. Inkwells easy to clean by integrated magnetic plates. All models with open ink system can easily be re-constructed for bigger inkwells. All machines equipped with safety plates at the sides as well as emergency switch and foot switch. Needed connection: compressed air 6bar, 230volts, 50cycles.
