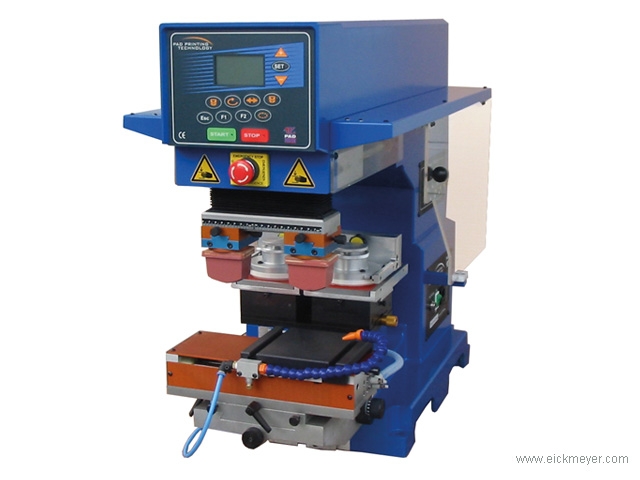

Pad Printing Machine TIC 132 SCEL (PRM2S LCD)

Prices after login !!!

Product No.: 16007132SCEL
Print product data sheet

Delivery time:

on request

Pad Printing Machine TIC 132 SCEL (PRM2S LCD)

2 colour machine, table-top model, pneumatic control, closed system, ink cup ø 90 mm, clichée size: 2x100x200mm, heith adjustable pneumatic controlled sliding table, pad pressure 105kg when 6bar. Needed connection: compressed air 6bar, 230volts, 50cycles

Sturdy housing made of aluminium cast, electro-pneumatic control, clear display with modern microprocessor control, optional signal outputs for connection of peripherals, European/Japanese pneumatic elements, low running by air sound absorbers, pad pressure adjustable via display, closed ink system with register pins for magnetic fastening, ink cups with ceramic doctor ring, contact pressure adjustable via magnetic adjustment. All machines equipped with safety plates at the sides as well as emergency switch and foot switch. Needed connection: compressed air 6bar, 230volts, 50cycles.
